10.4 inch Industrial tablet computer

The P5104-Android series is an industrial tablet computer with a modular design. The connection between the panel and the host adopts a reliable modular design and wireless relay link. Through flexible matching, it can realize the selection of multi-specification all-in-one computers and single hosts without changing the original site. Designed to be quickly upgraded and maintained.

PRODUCTS FEATURES

Resolution 1024*768

OS/CPU Android and Linux system / RK3568

Memory/Storage 2GB+16GB/4GB+32GB/8GB+64GB

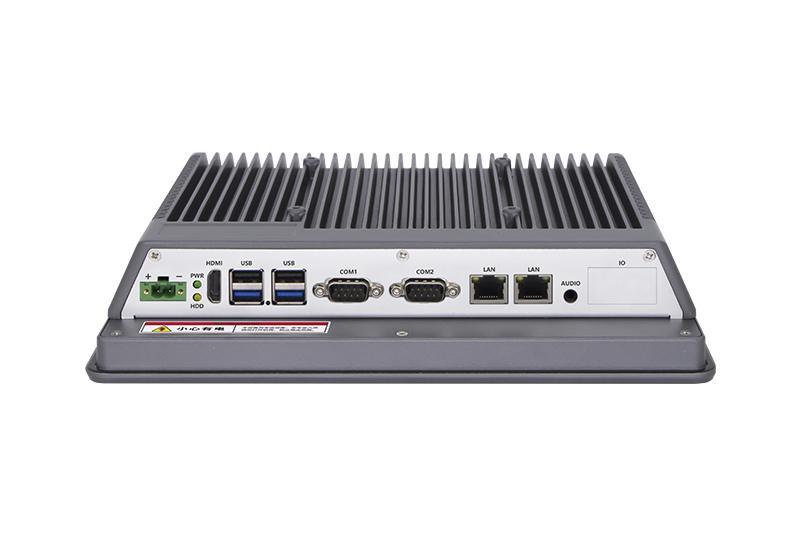

Interface 1*HDMI,2*LAN,4*USB,3*COM,1*TF card

Specification:

1.Mother Board Specification：

Model	P5104-Android
CPU	ARM Rockchip RK3568
Memory	On board SDRAM LPDDR4X-3200 MHz
	2GB	4GB	8GB
Storage	eMMC 5.1, 16GB	eMMC 5.1, 32GB	eMMC 5.1, 64GB
	1TF Card slot 1M.2 NVME 2242 slot
Display	1HDMI: Resolution up to 40902304@60Hz
Expansion	1*Mini-PCIE Slot, Support 4G module
Ethernet	2*RTL811F LAN Chip (10 / 100 / 1000 / 2500 Mbps, RJ-45)
USB	1USB 3.0 (Type-A) 3USB 2.0 (Type-A)
COM	1RS-232 / 485 (DB9 type) 2RS-232 (DB9 type)
Audio	1*Realtek® HDA Codec, with MIC/Line-out and Amplifier

2.Screen Specification：

Screen Size	10.4 inch TFT LED Screen, 4:3 Size
Resolution	1024*768
Brightness	350nits
	Support optional 500 / 700 / 1000 nits
Contrast	800:1
Largest Colorful	16M
Touch Screen Type	Capacitive	Resistive
Light Transmittance	More than 95%	More than 95%
Touch Life	50 million times	35 million times
Response Time	＜5ms	＜5ms
Touch Hardness	6 Mohs

3.Machine Specification：

Power Input	DC 12V (Support optional DC 9-36V Wide Voltage Power Input)
	Support AT / ATX
	1*2.5mm circle type DC plug
Working Temperature	-20℃~60℃, Support 24/7 Working
Size	271.5mm218mm56mm
Structure	Fully Enclosed Aluminum Alloy Material
Heat dissipation	Fanless Design, Conduction Heat Dissipation
Installation	Desktop / Embedded / Wall-Mounted
System	Android 11 and Linux
Water Proof	Front Panel IP65 water proof
