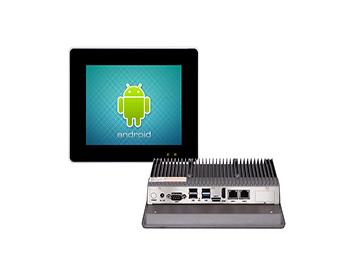

The P5000-Android series is an industrial tablet computer with a modular design. The connection between the panel and the host adopts a reliable modular design and wireless relay link. Through flexible matching, it can realize the selection of multi-specification all-in-one computers and single hosts without changing the original site. Designed to be quickly upgraded and maintained.

PRODUCTS FEATURES

Resolution 800*600

OS/CPU Android and Linux system / RK3568

Memory/Storage 2GB+16GB/4GB+32GB/8GB+64GB

Interface 1*HDMI,2*LAN,4*USB,1*COM,1*TF card slot

Specification:

1.Mother Board Specification:

ModelP5080-Android
CPUARM Rockchip RK3568
MemoryOn board SDRAM LPDDR4X-3200 MHz
2GB4GB8GB
StorageeMMC 5.1, 16GBeMMC 5.1, 32GBeMMC 5.1, 64GB
1*TF Card slot
1*M.2 NVME 2242 slot
Display1*HDMI: Resolution up to 4090*2304@60Hz
Expansion1*Mini-PCIE Slot, Support 4G module
Ethernet2*RTL811F LAN Chip (10 / 100 / 1000 / 2500 Mbps, RJ-45)
USB1*USB 3.0 (Type-A)
3*USB 2.0 (Type-A)
COM1*RS-232 / 485 (DB9 type)
5*RS-232 (Phoenix terminal type, Optional)
Audio1*Realtek® HDA Codec, with MIC/Line-out and Amplifier
CAN1*CAN port (Optional)
GPIOOptional

2.Screen Specification:

Screen Size8 inch TFT LED Screen, 4:3 Size
Resolution800*600
Optional 1024*768 resolution
Brightness350nits
Support optional 500 / 700 nits
Contrast800:1
Largest Colorful16M
Touch Screen TypeCapacitiveResistive
Light TransmittanceMore than 95%More than 95%
Touch Life50 million times35 million times
Response Time<5ms<5ms
Touch Hardness6 Mohs

3.Machine Specification:

Power InputDC 12V
Support AT / ATX
1*2.5mm circle type DC plug
Working Temperature-20℃~60℃, Support 24/7 Working
Size224mm*203mm*54mm
StructureFully Enclosed Aluminum Alloy Material
Heat dissipationFanless Design, Conduction Heat Dissipation
InstallationDesktop / Embedded / Wall-Mounted
SystemAndroid 11 and Linux
Water ProofFront Panel IP65 water proof
